Major BOS 4c Table-Top Console | Multi-Radio Dispatcher Console

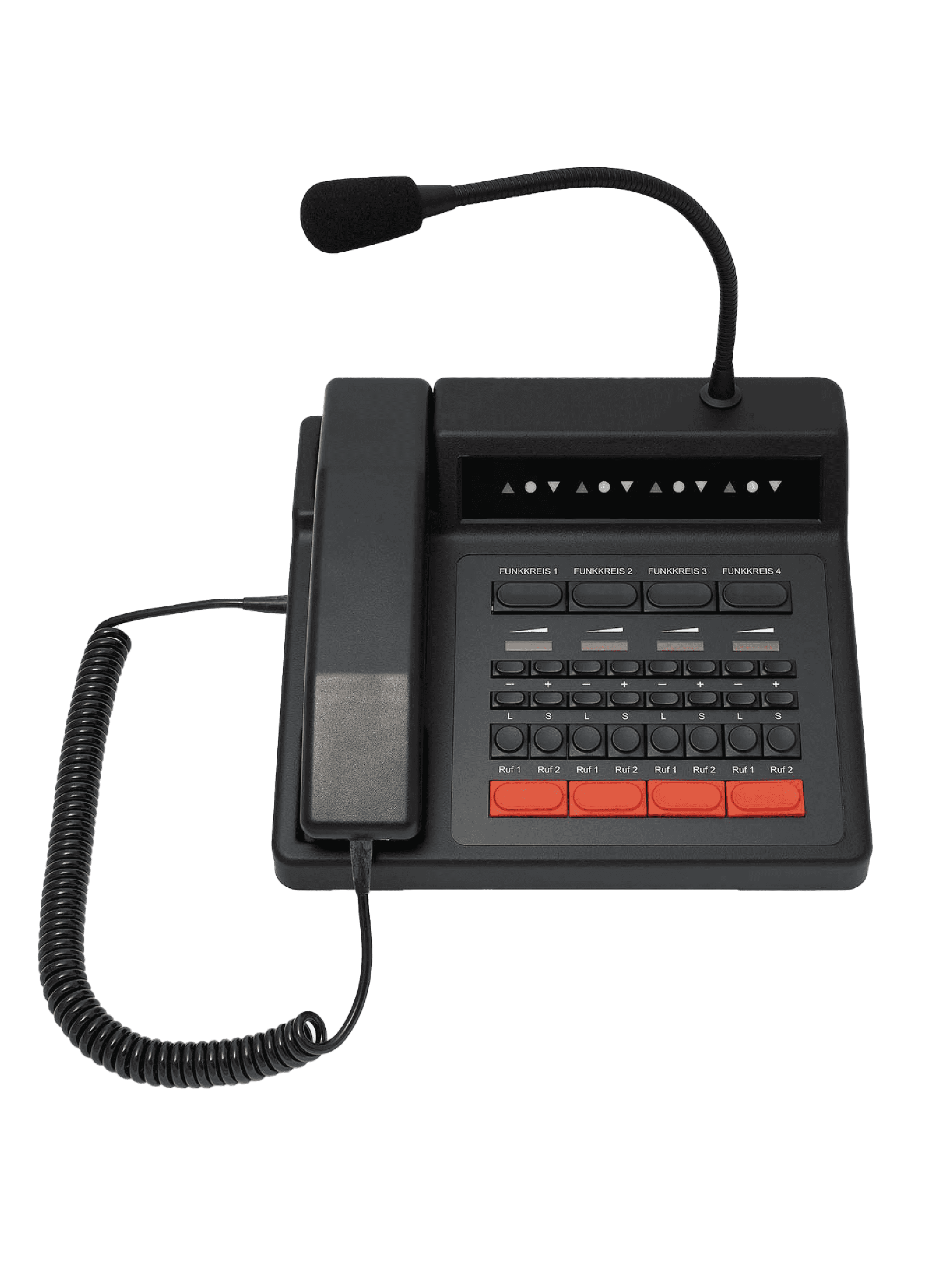

The Major BOS 4c Table-Top Console is a desktop control unit designed for dispatcher workstations, allowing the operation of up to four radios. The system enables users to monitor and manage radio circuits using a gooseneck microphone, handset, or an optional headset. The radios can be intuitively selected at any time, ensuring smooth and efficient communication management.

Key Features:

  • Supports up to four radio channels, including PA or intercom systems.
  • Multi-wire connection capability for seamless integration.
  • Flexible audio control with integrated gooseneck microphone, handset, and optional headset.
  • Configurable LED display providing status information for all available radio circuits.
  • Push-to-talk (PTT) functionality via handset, footswitch, or external PTT button.
  • RS232 audio output for external recording and integration.
  • Power supply via external +12V DC source or optional power adapter.
  • Configurable web interface for easy customization and network integration.

LED Display & Loudspeaker Control:

The LED display provides real-time status updates for:

  • Selection status – Displays active radio channels.
  • PTT activation – Indicates when push-to-talk is triggered.
  • Carrier detection – Shows when an incoming call is being received.

The integrated loudspeaker can be activated or deactivated using a dedicated button, with volume adjustments controlled via LED bar indicators.

Rear Connections:

  • Power supply socket: +12V DC input.
  • RS232 socket for audio output and control.
  • PTT socket for footswitch or headset adapter.
  • Headset socket for external headset connection.
  • Four radio connection sockets (8-pin standard interface).
  • Ethernet socket for web interface access.

Configuration via Web Interface:

The Major BOS 4c features a user-friendly web interface for configuration, accessible via a default IP address or through DHCP network integration. The interface allows for:

  • Customized audio settings.
  • Adjustments to loudspeaker behavior during PTT.
  • Network configuration and system monitoring.

Why Choose the Major BOS 4c Console?

  • Designed for dispatcher workstations handling up to four radio systems.
  • Intuitive operation with LED indicators and volume control.
  • Multiple audio and connectivity options for flexible deployment.
  • Web-based configuration for easy customization and remote access.
  • Robust construction for long-term reliability in demanding environments.

Applications:

  • 🔹 Public Safety & Emergency Services – Fire, Police, and Medical dispatch systems.
  • 🔹 Transportation & Logistics – Railway, aviation, and maritime communication centers.
  • 🔹 Industrial Operations – Manufacturing plants, power grids, and utility control rooms.
  • 🔹 Security & Defense – Military installations, border control, and private security networks.

A version for desk integration is available for installation directly into a workstation.
For more details, please visit this page. For a quotation, please contact us.
