RJ45 Distribution Frame | Parallel Connection for Major BOS Control Panels

The RJ45 Distribution Frame is a professional distribution unit designed to connect multiple Major BOS control panels in parallel to a single radio circuit. It ensures seamless and interference-free communication across multiple devices using a structured RJ45 patch field. The unit is available in two configurations to meet different system requirements.

Key Features:

  • Parallel Connection Capability – Enables multiple Major BOS units to share a single radio circuit.
  • Two Available Versions – Supports up to 7 devices (7-port version) or two independent 3-port groups (2x3-port version).
  • Standard RJ45 Connectivity – Uses industry-standard RJ45 patch cables for simple installation.
  • 1:1 Wired Patch Field – Ensures direct signal routing without additional configuration.
  • Supports Multiple Frequency Bands – Works with both digital and analog radio circuits.

Available Versions & SKUs:

  • 903020 – RJ45 Distribution Frame (2x3-port) for connecting up to 3 Major BOS control panels per radio circuit, supporting 2 separate radio circuits.
  • 903021 – RJ45 Distribution Frame (7-port) for connecting up to 7 Major BOS control panels to a single radio circuit.

Connection & Setup:

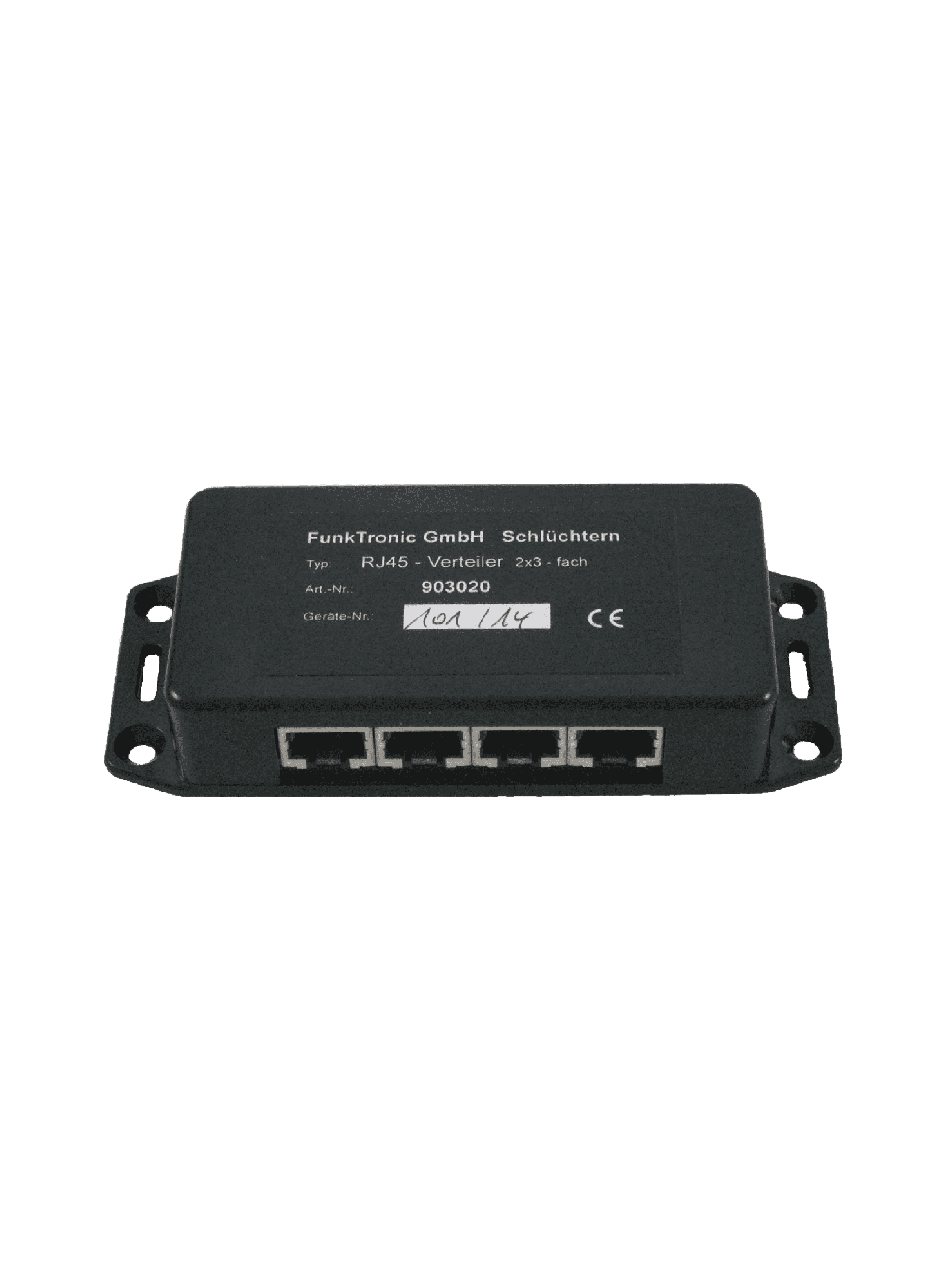

RJ45 Distribution Frame (2x3-port) – SKU: 903020

This version allows two independent radio circuits to be connected to up to three Major BOS control panels each. It is ideal for setups requiring dual-frequency or separate analog and digital circuits. When using this version, all connections for the same circuit must be plugged into the same side of the unit.

RJ45 Distribution Frame (7-port) – SKU: 903021

The 7-port version enables up to seven Major BOS control panels to be connected to a single radio circuit. For larger installations, multiple 7-port frames can be used, with one unit dedicated to each radio circuit.

Application Example:

Three Major BOS 4a control panels can be connected to both a digital radio circuit and an analog radio circuit using the 2x3-port version. Connections between the Major BOS panels, the RJ45 Distribution Frame, and the interface (e.g., MBOSx <--> MTM800FuG) are made using standard RJ45 patch cables.

Why Choose the RJ45 Distribution Frame?

  • Reliable distribution of Major BOS control panels across radio circuits.
  • Supports both single and dual-radio circuit setups.
  • Plug-and-play operation with standard RJ45 patch cables.
  • Ideal for public safety, dispatch, and industrial communication setups.

Applications:

  • 🔹 Emergency Dispatch & Public Safety – Connects multiple control panels in police, fire, and ambulance communication centers.
  • 🔹 Industrial & Utility Operations – Enables radio communication across large work sites.
  • 🔹 Transportation & Logistics – Used in railway, aviation, and maritime communication systems.
