USB/RS232/RS485 Interface | Kenwood & Motorola Radio Communication

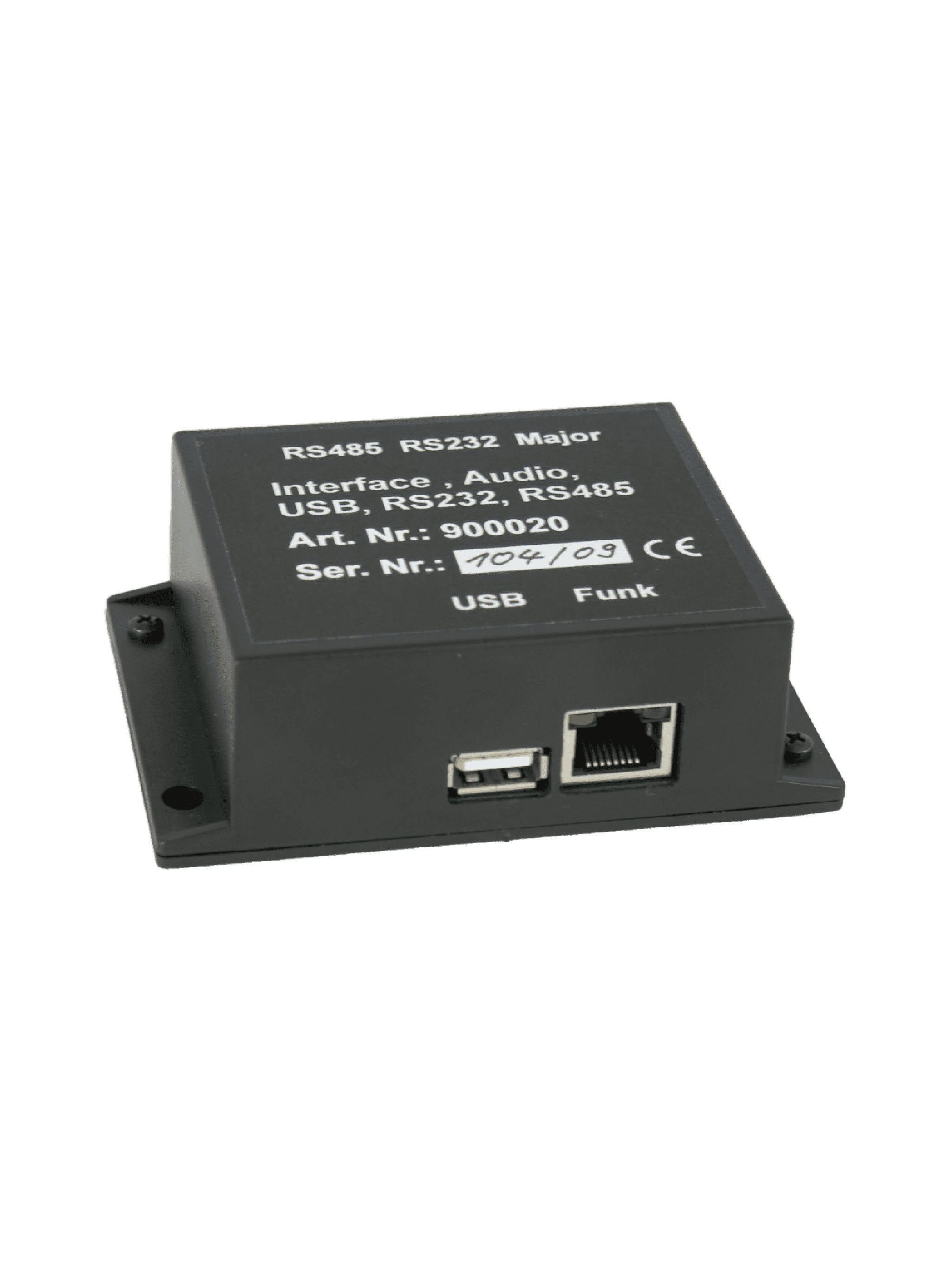

The USB/RS232/RS485 Interface is a professional communication module that enables seamless integration of Kenwood NEXEDGE and Motorola MOTOTRBO radios with Major BOS control panels. This interface allows remote control, audio signal management, and data exchange via multiple communication protocols.

Key Features:

• Multi-Protocol Support – Provides RS232, RS485, and USB connectivity for enhanced flexibility.
• Compatible with Major BOS Control Panels – Allows integration with Funktronic Major 4a/5a series.
• Dedicated Versions for Kenwood & Motorola – Optimized communication for both radio brands.
• Full-Duplex Audio Transmission – Supports bi-directional analog audio signal transmission.
• Adjustable Gain Levels – Allows fine-tuning of audio levels between radio and control panel.
• LED Indicators – Displays operational status, connectivity, and data transmission.
• Rugged & Compact Design – Small form factor for easy integration into radio setups.

Available Versions & SKUs:

• 900020 – USB/RS232/RS485 Interface (Universal model)
• 900921 – Connection Cable for FT635 ÜLE
• 900930 – Connection Cable for Kenwood NEXEDGE NX-700-E
• 900920 – Connection Cable for Motorola MOTOTRBO
• 900923 – Programming Cable for Audio-USB Interface

Connection Details:

Kenwood NEXEDGE Version

The interface enables remote control of Kenwood NEXEDGE radios through a Funktronic Major BOS control panel. It supports serial data communication via RS232 and analog audio transmission.

Motorola MOTOTRBO Version

This version is optimized for controlling Motorola MOTOTRBO radios via USB and RS232. The audio signals are transmitted in an analog way between the Major BOS panel and the radio.

LED Status Indicators:

• Left LED (Yellow): Indicates connection attempt to radio or control panel.
• Right LED (Green): Signals successful connection to Major BOS.
• Blinking LEDs: Shows ongoing communication between radio and control panel.

Programming & Configuration:

The interface allows software-based configuration via the service interface:

• EEPROM settings adjustment.
• Baud rate selection for RS485.
• Potentiometer control for audio signal levels.

Why Choose the USB/RS232/RS485 Interface?

• Seamless remote control integration for Kenwood & Motorola radios.
• High-quality audio transmission with adjustable gain settings.
• Robust RS485 bus with built-in termination resistors.
• Ideal for dispatch, industrial, and mission-critical communication setups.

Applications:

• 🔹 Emergency Dispatch & Public Safety – Ensures secure communication between control centers and field units.
• 🔹 Industrial & Utility Operations – Enables centralized control of distributed radio networks.
• 🔹 Transportation & Logistics – Facilitates seamless coordination in railway, aviation, and maritime sectors.
