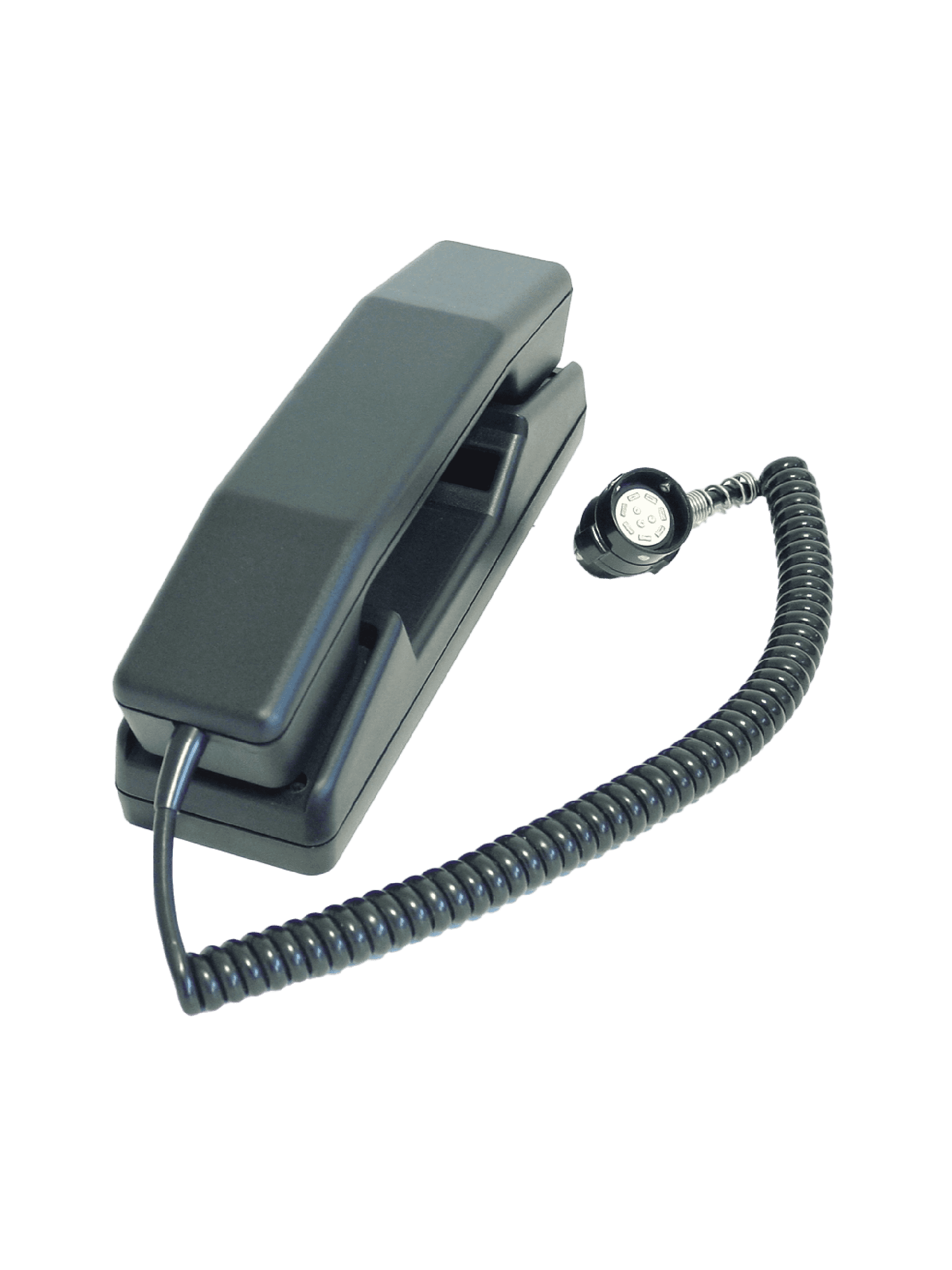

Commander BOS A | Professional Handset for BOS Radios

The Commander BOS A is a specialized handset designed for use with BOS radio systems. It is equipped with an integrated microphone, push-to-talk functionality, and adjustable input/output levels, making it ideal for emergency services, public safety, and industrial applications.

Key Features:

• Push-to-Talk Function – The transmitter is activated by pressing the send button inside the handset.
• Integrated Speaker and Microphone – Allows for clear communication in demanding environments.
• Adjustable Audio Levels – Input (RX) and output (TX) levels can be modified using potentiometers.
• Jumper-Configurable Output – The output level can be switched between 5mV and 500mV using Jumper JP1.
• Parallel Operation Capability – Multiple Commander BOS A units can be connected in parallel.
• Compatible with BOS Radio Systems – Connects via a 10-pin BOS plug or open cable end.

Connections:

The Commander BOS A is available with either a 10-pin BOS plug or an open cable end. It includes connections for:

• Power Supply (+12V DC)
• Push-to-Talk (PTT) Activation
• Audio Input/Output for Speaker and Microphone
• Ground (GND)

Why Choose the Commander BOS A?

• Designed for professional BOS radio communication.
• Compact and lightweight, making it easy to use.
• Adjustable audio levels for enhanced performance.
• Reliable push-to-talk operation with parallel connection support.

Applications:

• 🔹 Emergency Services – Fire, Police, and Medical dispatch communications.
• 🔹 Public Safety – Security teams, disaster response, and government agencies.
• 🔹 Transportation – Railway, aviation, and maritime communication hubs.
• 🔹 Industrial & Utility Operations – Power plants, oil & gas, and critical infrastructure.
