TKE-2 Desk Microphone | Professional Table-Top Communication Unit

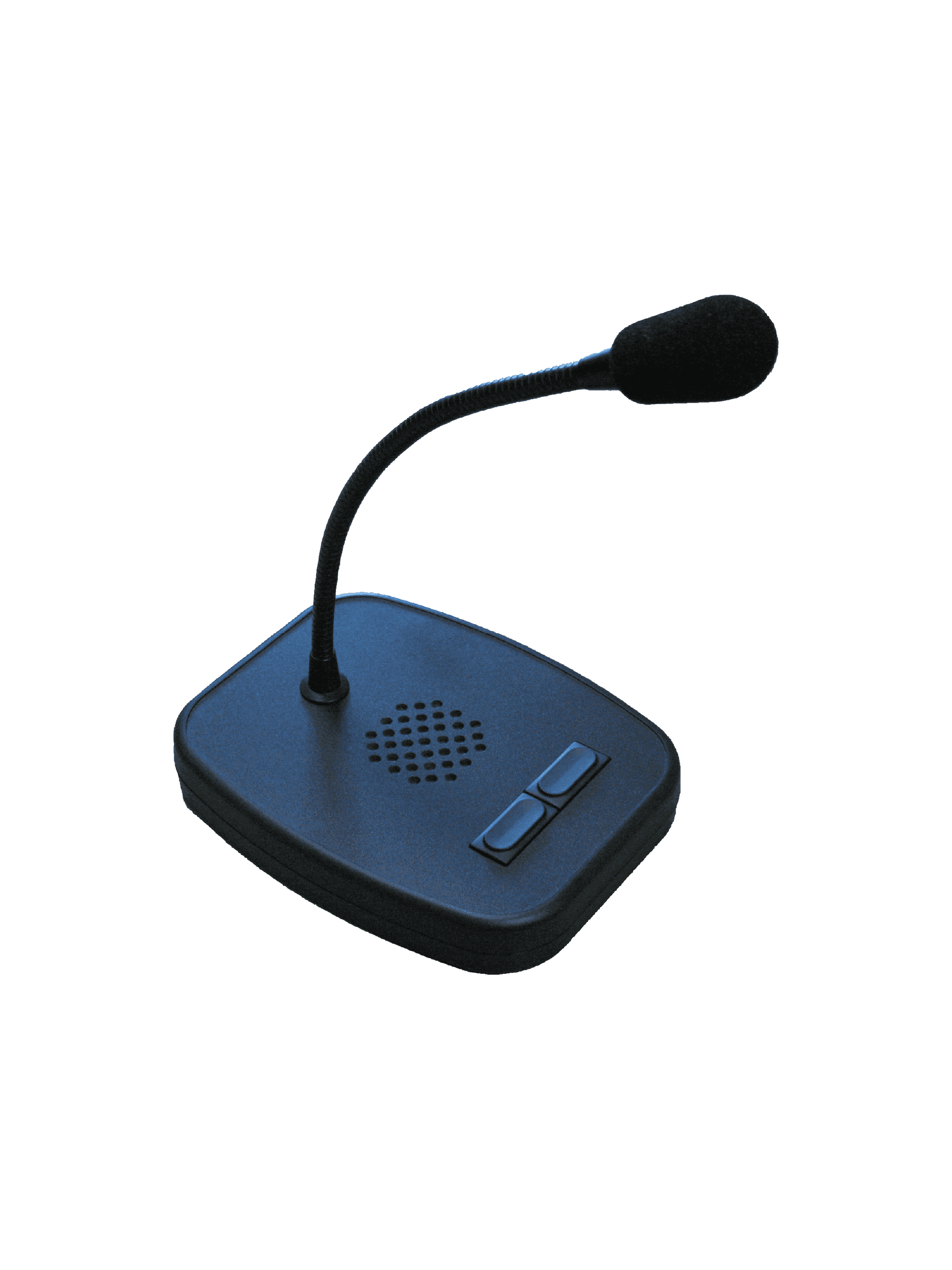

The TKE-2 is a versatile desk microphone designed for multi-purpose communication applications. It can be used with radio systems, public address (PA) setups, or in conference environments. The unit is available in two versions: a single-button variant and a two-button variant, both ensuring clear and reliable voice transmission.

Key Features:

  • Table-Top Design – Compact and ergonomic pedestal with an integrated gooseneck microphone.
  • Push-to-Talk (PTT) Function – Activates the microphone only when pressed, preventing open lines.
  • One-Button & Two-Button Variants – Allows different communication setups depending on the user's needs.
  • Parallel Operation – Multiple TKE-2 units can be connected in parallel without interference.
  • Flexible Connectivity – RJ45 modular jack and power supply socket for easy integration.
  • Configurable Audio Settings – Adjustable input/output levels and microphone amplification via internal jumpers.
  • Optional Customization – Available in different colors or without a loudspeaker upon request.

Available Variants:

TKE-2 One-Button Version

  • External reference voltage applied to ST1/pin3.
  • PTT (Push-to-Talk) is switched to the reference voltage.

TKE-2 Two-Button Version

  • PTT (right button) – ST1/pin6 switches to GND.
  • ZBV (left button) – ST1/pin3 switches to GND.

Connectivity:

  • ST1 (RJ45 Modular Jack) – Audio input/output, PTT function, and ground.
  • ST2 (Power Supply Socket) – Connects to external +12V DC source.
  • ST3 (Internal Multi-Pin Connector) – Provides microphone voltage and ground connections.
  • LS1/LS2 (Speaker Connectors) – Internal audio input and loudspeaker connectivity.

Why Choose the TKE-2 Desk Microphone?

  • Reliable and high-quality voice transmission for various communication environments.
  • Push-to-talk function ensures controlled and interference-free communication.
  • Parallel operation capability allows multiple microphones to be used together.
  • Configurable jumpers for adjusting audio levels and microphone behavior.
  • Customizable design options available upon request.

Applications:

  • 🔹 Radio Communication – Ideal for dispatch centers and control rooms.
  • 🔹 Public Address Systems – Used in schools, offices, and emergency notification setups.
  • 🔹 Conference & Meeting Rooms – Ensures clear communication in professional environments.
  • 🔹 Industrial & Utility Operations – Used in factory and large-scale industrial communication setups.
