TETRA FX1 Siren Control | Advanced TETRA Alarm System

The TETRA FX1 Siren Control is a high-performance siren activation unit designed for emergency alert systems, integrating seamlessly with TETRA digital radio networks. It allows remote activation and monitoring of sirens using TETRA signaling, making it ideal for public safety, fire departments, and industrial applications.

Key Features:

  • Remote Siren Activation – Controls sirens via TETRA networks with SDS-TL Callout alarm signaling.
  • Wide Compatibility – Supports multiple TETRA radio models, including Motorola MTM800 FuG ET, SRG3900, and SCG22.
  • Predefined Siren Sequences – Includes configurable sequences for fire alarms, disaster warnings, evacuation alerts, and test modes.
  • Secure Communication – Supports up to 128 alarm address combinations with Group Short Subscriber Identity (GSSI) and individual signaling.
  • Status Feedback & Monitoring – Provides real-time status reports via Callout-Info-PDU or standard SDS.
  • Multiple Input/Output Interfaces – Includes 6 relay outputs (expandable) and 8 configurable inputs for alarm triggers.
  • LED Indicators – Displays system status, power, and fault conditions.
  • Configuration via Software – Programmable through the Prog_TTETRAFX1 configuration tool.
  • DIN Rail Mounting Option – Compact logic board version available for industrial integration.

Available Variants:

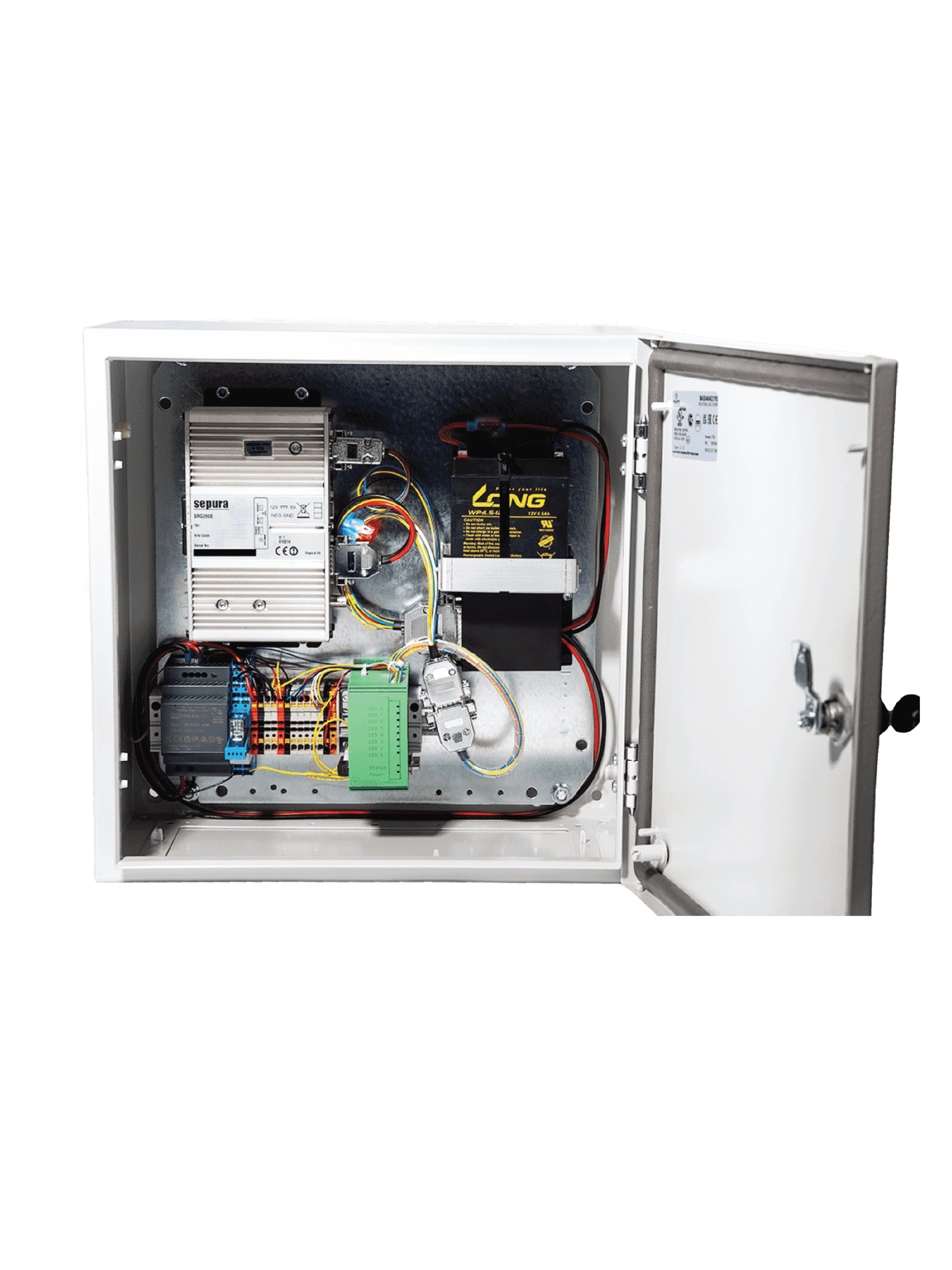

TETRA FX1 in Control Cabinet – 230V Version (Protection Class I & II)

  • Designed for retrofitting existing systems.
  • Includes power supply, backup battery, and pre-drilled mounting holes.
  • Compatible with Motorola MTM800 FuG ET, Sepura SRG3900, and SCG22.

TETRA FX1 in Control Cabinet – 24V Version (Protection Class III)

  • Includes a DC/DC converter for 24V operation.
  • Monitoring functions for power supply status.
  • Compatible with Motorola MTM800 FuG ET, Sepura SRG3900, and SCG22.

TETRA FX1 - GPIO Control + Power Box (24V Version)

  • Provides digital siren control functions via GPIO in a double housing.
  • Completely designed for DIN rail mounting.

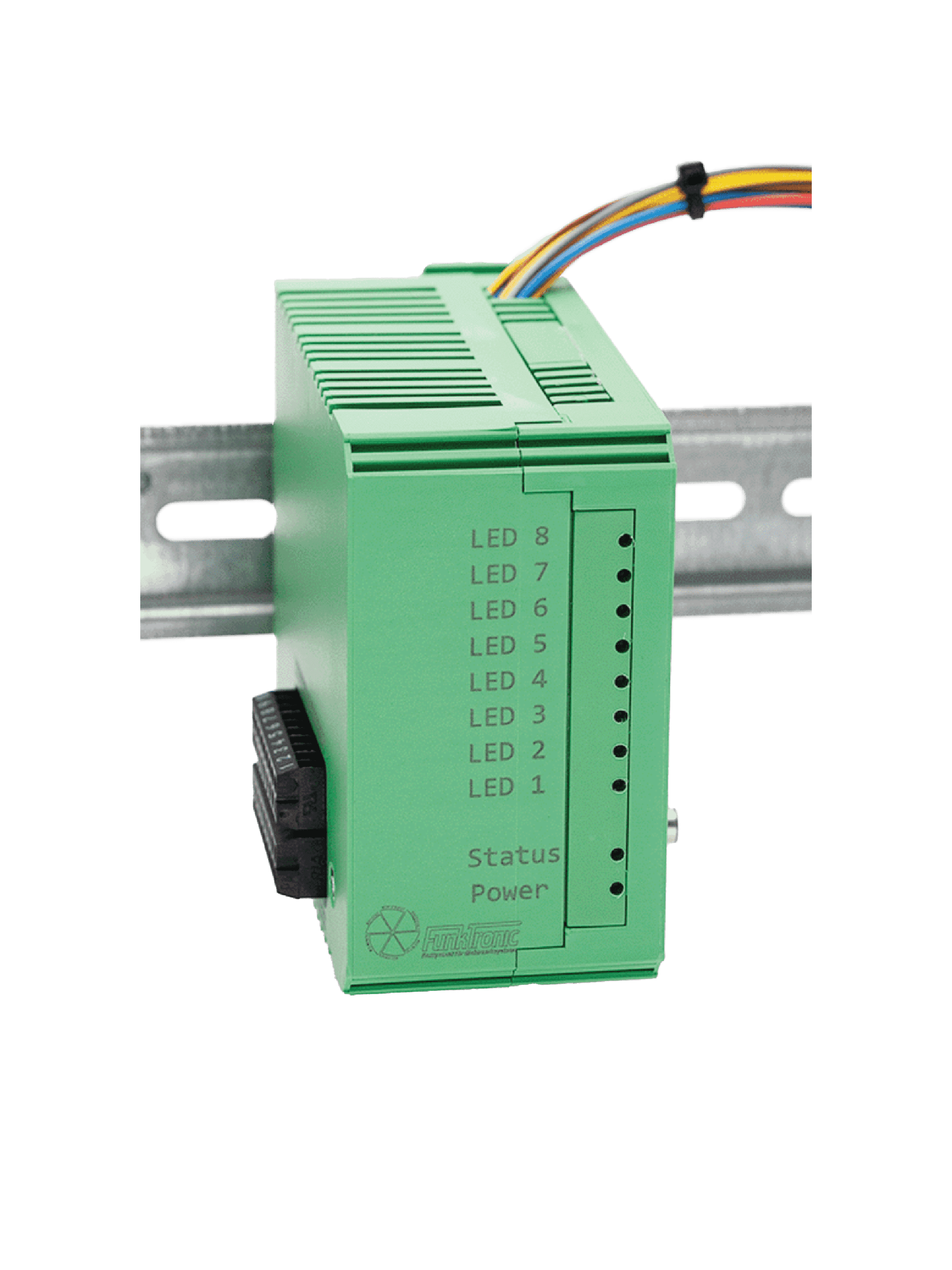

TETRA FX1 - GPIO Control (DIN Rail Mounting)

  • Compact logic board version with relay outputs.
  • Ideal for industrial and modular integrations.

Why Choose the TETRA FX1 Siren Control?

  • Reliable siren activation through TETRA digital radio networks.
  • Multiple configurations for different power and mounting requirements.
  • Advanced monitoring with real-time feedback and alarm verification.
  • Designed for mission-critical applications in public safety and industrial alerting.

Applications:

  • 🔹 Emergency Services – Fire departments, police, and rescue operations.
  • 🔹 Public Safety – City-wide siren activation for disasters and evacuations.
  • 🔹 Industrial & Utility Operations – Power plants, oil & gas, and hazardous areas.
  • 🔹 Transportation & Logistics – Railway and airport emergency notification systems.
