MBOSMOT Interface | Integration for Major BOS & Motorola MTM800FuG

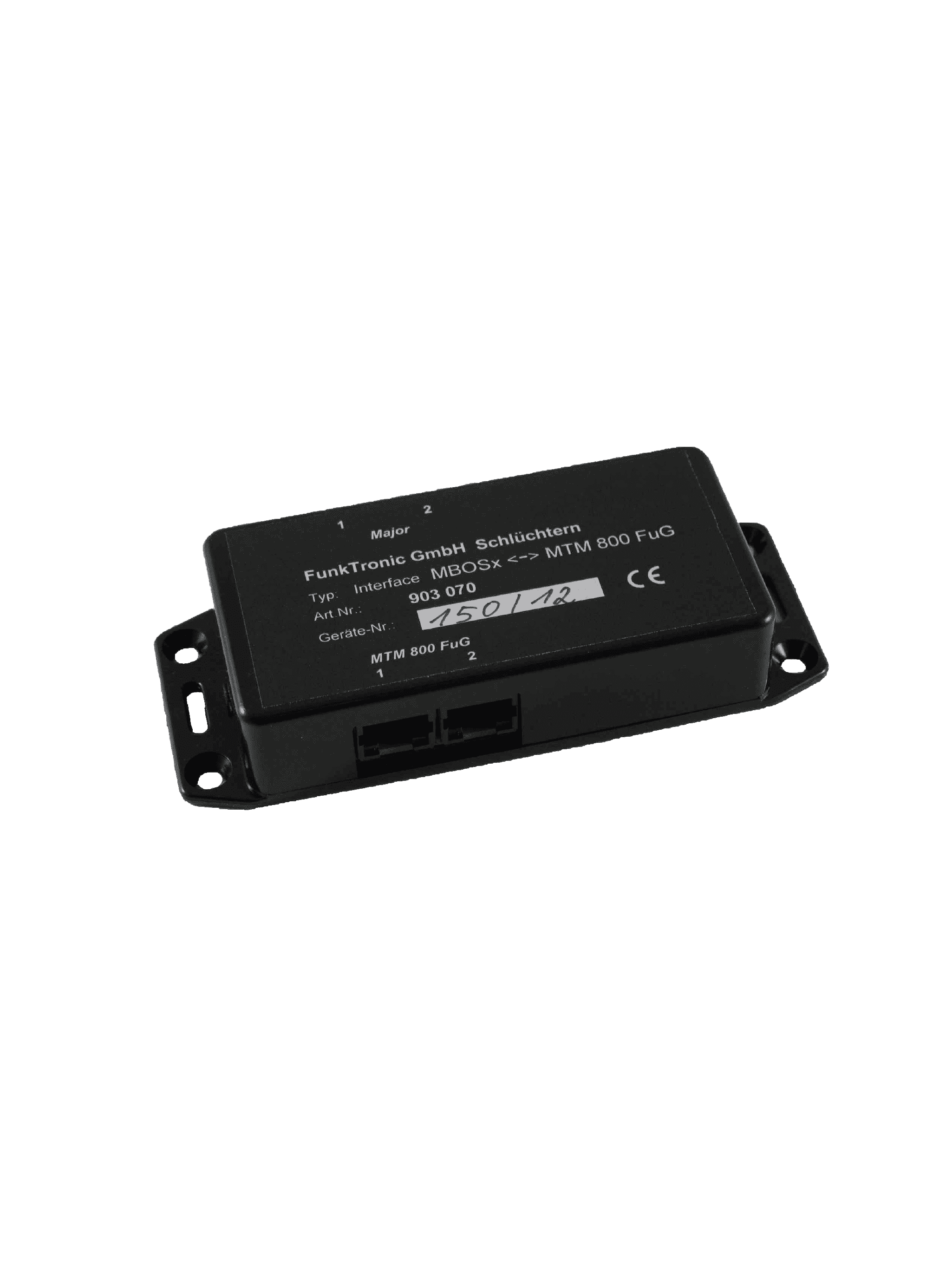

The MBOSMOT Interface is a specialized connection unit designed to seamlessly integrate Major BOS control panels with Motorola MTM800FuG TETRA radios. It ensures efficient communication by managing audio signals, push-to-talk (PTT) functions, and squelch control between the Major BOS dispatch system and the Motorola radio.

Key Features:

  • Seamless Integration – Connects Major BOS (1a, 2a/b, 4a, 8a) control panels with Motorola MTM800FuG TETRA radios.
  • Dual Radio & Panel Support – Supports two control panel connections and two radio device connections.
  • Push-to-Talk (PTT) Signal Relay – Passes PTT signals from the Major BOS panel to the Motorola radio.
  • Squelch Signal Processing – Extracts and forwards the squelch signal to the Major BOS control panel.
  • Configurable Signal Polarity – Jumper-adjustable High Active / Low Active settings for PTT and squelch.
  • Audio Level Adjustment – Built-in potentiometers (P1/P3) allow fine-tuning of microphone input levels.
  • Fixed Audio Output Support – Requires Motorola radio to be programmed with a fixed NF output level.
  • Compact & Lightweight Design – Small form factor for easy installation in radio setups.

Programming & Setup:

For optimal operation, the Motorola MTM800FuG radio must be programmed with a fixed NF output level using Motorola's PC programming software.

  • Ensure correct parameter settings in the "Einrichtung Transceiver-Zubehör" menu.
  • Adjust squelch timing and transmission settings for Major BOS compatibility.
  • Use the supplied programming cable for setup.

Why Choose the MBOSMOT Interface?

  • Enables smooth communication between Major BOS control panels and Motorola MTM800FuG radios.
  • Adjustable audio levels and squelch settings for enhanced control.
  • Compact and lightweight for easy installation.
  • Reliable integration for mission-critical communication environments.

Applications:

  • 🔹 Emergency Dispatch & Public Safety – Ensures seamless communication between dispatch centers and field teams.
  • 🔹 Industrial & Utility Operations – Reliable connection between control rooms and mobile units.
  • 🔹 Transportation & Logistics – Integrated radio control for railway, aviation, and maritime communications.
